When a buyer hires a Professional Home Inspector like Boxer Inspections, they will want to know the condition of all significant systems in the house. In the Houston area, a major concern is always the HVAC or Heating Ventilation Air Conditioning system and especially, the AC side of the system.
The AC system consists of two major components:
AC condenser - usually outside beside the home or on the roof of condos or townhomes. This part of the system exchanges the heat absorbed by the system from inside the home and "exchanges" it to the outside air. It is composed of the compressor which pumps the refrigerant through the system and the heat exchanger coils.
Evaporator - usually inside the home either in the attic or a utility closet inside the home. This part of the system is cold as the refrigerant passes through it. The refrigerant absorbs heat from the air thus cooling the air. This cooler air is then forced into the home by the air handler.
Other components - air handler, cooling lines, condensate drain lines
Condenser Evaporator
Below are a few items a Professional Home Inspector will look for when inspecting the system components.
Condenser or Condensing Unit:
Unit should be level to ensure oil property lubricates the pump
Unit should be 3 inches higher than the ground (grade)
Unit should be clean without dirt and debris inside the unit or on the heat exchanger fins
Unit should not be loud, noisy, or vibrate heavily
The AC service lines must have Anti-Tamp proof caps installed
The cold line (suction line) should be thoroughly wrapped with insulation from the condenser to the evaporator
Evaporator Unit:
Unit should be sealed tightly without air leaks

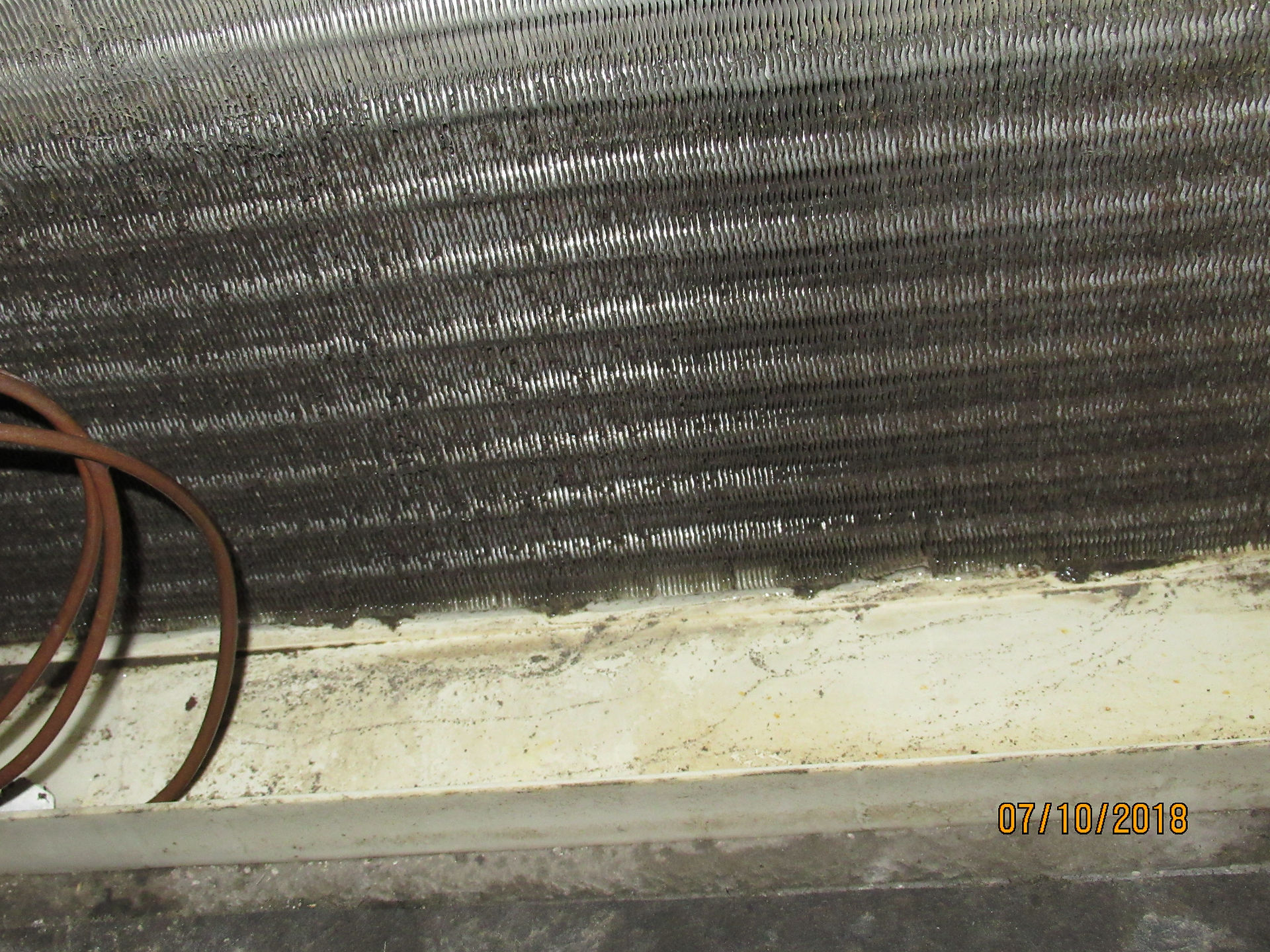

Unit should be clean. If an inspection port is available, the Professional Home Inspector will check the coils
The cold line (suction line) should be fully insulated all the way to the evaporator cabinet
The condensate drain line from the evaporator cabinet must also be insulated for the first 10 feet
The condensate drain line must be 3/4 inch diameter and have a p-type trap installed
Secondary condensate drain line must drain to a catch pan
As one would expect, there are a number of other items to check when inspecting the HVAC system. While this blog post discusses the AC system, the heater portion must also be checked.
